# Regression discontinuity with sci-kit learn models#

```
from sklearn.gaussian_process import GaussianProcessRegressor
from sklearn.gaussian_process.kernels import ExpSineSquared, WhiteKernel
from sklearn.linear_model import LinearRegression
import causalpy as cp
```

```
%config InlineBackend.figure_format = 'retina'
```

## Load data#

```
data = cp.load_data("rd")
data.head()
```

x | y | treated | |
---|---|---|---|

0 | -0.932739 | -0.091919 | False |

1 | -0.930778 | -0.382663 | False |

2 | -0.929110 | -0.181786 | False |

3 | -0.907419 | -0.288245 | False |

4 | -0.882469 | -0.420811 | False |

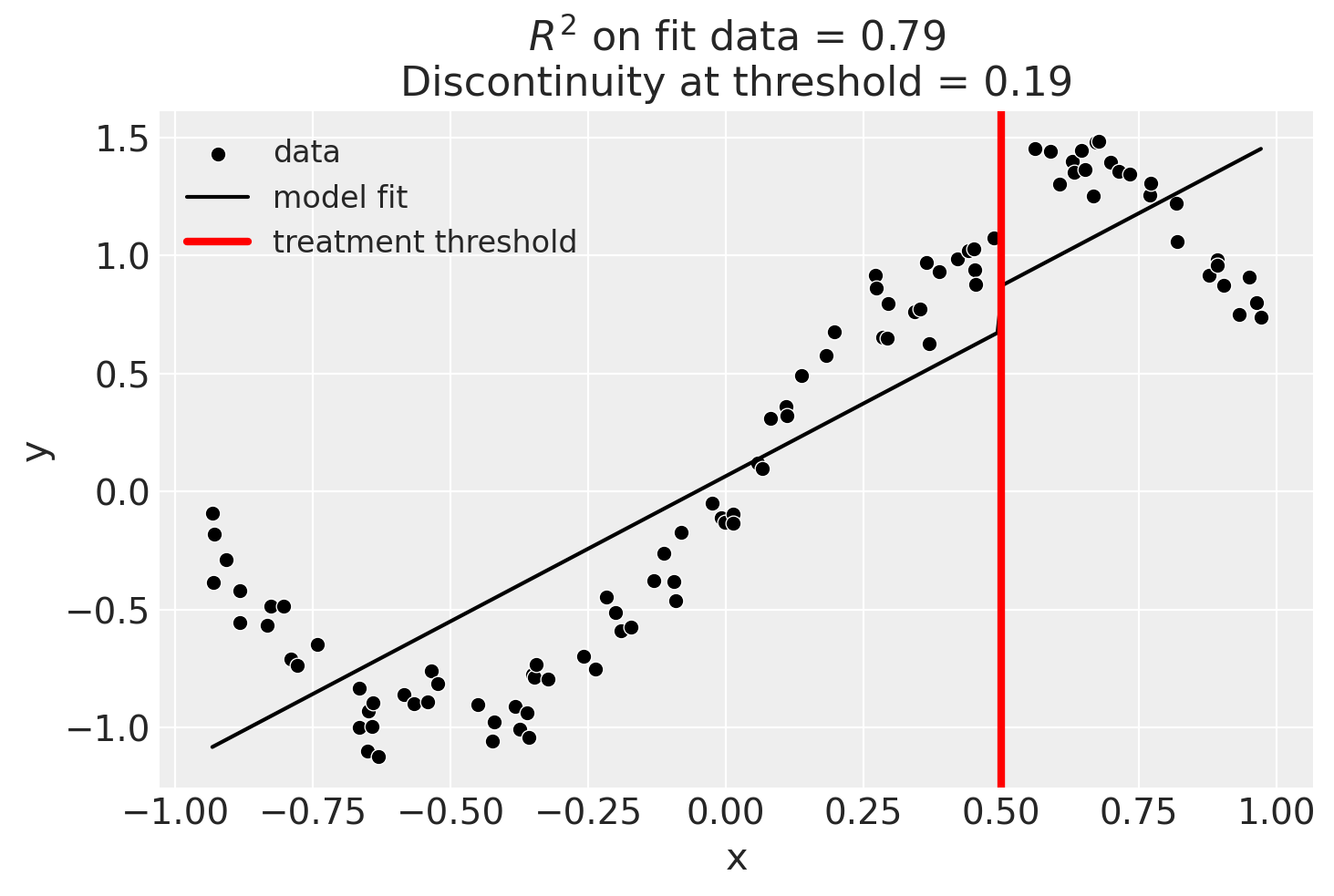

## Linear, main-effects model#

```
result = cp.RegressionDiscontinuity(
data,
formula="y ~ 1 + x + treated",
model=LinearRegression(),
treatment_threshold=0.5,
)
```

```
fig, ax = result.plot()
```

```
/Users/benjamv/opt/mambaforge/envs/CausalPy/lib/python3.11/site-packages/IPython/core/pylabtools.py:77: DeprecationWarning: backend2gui is deprecated since IPython 8.24, backends are managed in matplotlib and can be externally registered.
warnings.warn(
/Users/benjamv/opt/mambaforge/envs/CausalPy/lib/python3.11/site-packages/matplotlib_inline/config.py:68: DeprecationWarning: InlineBackend._figure_format_changed is deprecated in traitlets 4.1: use @observe and @unobserve instead.
def _figure_format_changed(self, name, old, new):
/Users/benjamv/opt/mambaforge/envs/CausalPy/lib/python3.11/site-packages/IPython/core/pylabtools.py:77: DeprecationWarning: backend2gui is deprecated since IPython 8.24, backends are managed in matplotlib and can be externally registered.
warnings.warn(
/Users/benjamv/opt/mambaforge/envs/CausalPy/lib/python3.11/site-packages/IPython/core/pylabtools.py:77: DeprecationWarning: backend2gui is deprecated since IPython 8.24, backends are managed in matplotlib and can be externally registered.
warnings.warn(
```

```
result.summary(round_to=3)
```

```
Difference in Differences experiment
Formula: y ~ 1 + x + treated
Running variable: x
Threshold on running variable: 0.5
Results:
Discontinuity at threshold = 0.19
Model coefficients:
Intercept 0
treated[T.True] 0.19
x 1.23
```

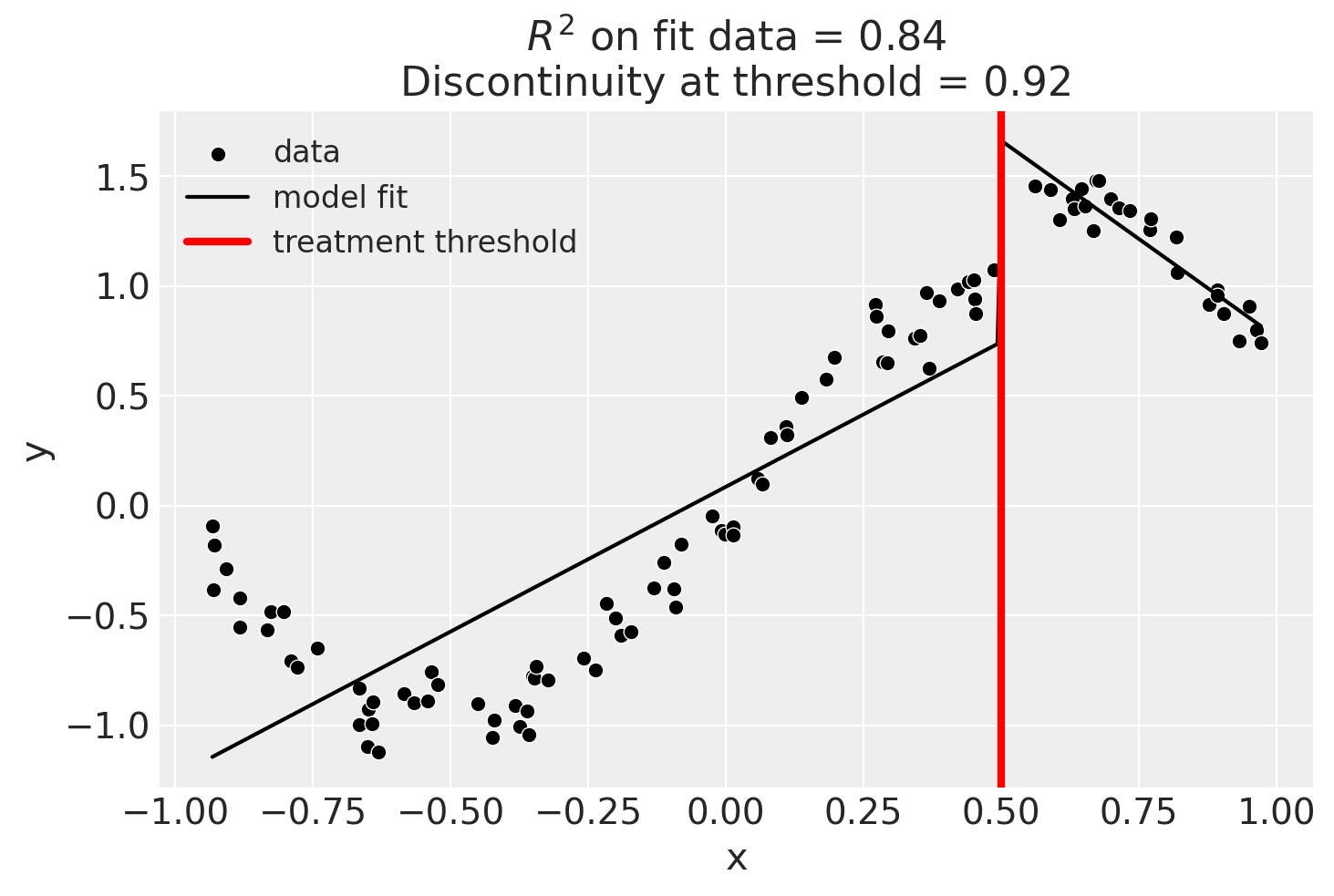

## Linear, main-effects, and interaction model#

```
result = cp.RegressionDiscontinuity(
data,
formula="y ~ 1 + x + treated + x:treated",
model=LinearRegression(),
treatment_threshold=0.5,
)
```

Though we can see that this does not give a good fit of the data almost certainly overestimates the discontinuity at threshold.

```
result.summary(round_to=3)
```

```
Difference in Differences experiment
Formula: y ~ 1 + x + treated + x:treated
Running variable: x
Threshold on running variable: 0.5
Results:
Discontinuity at threshold = 0.92
Model coefficients:
Intercept 0
treated[T.True] 2.47
x 1.32
x:treated[T.True] -3.11
```

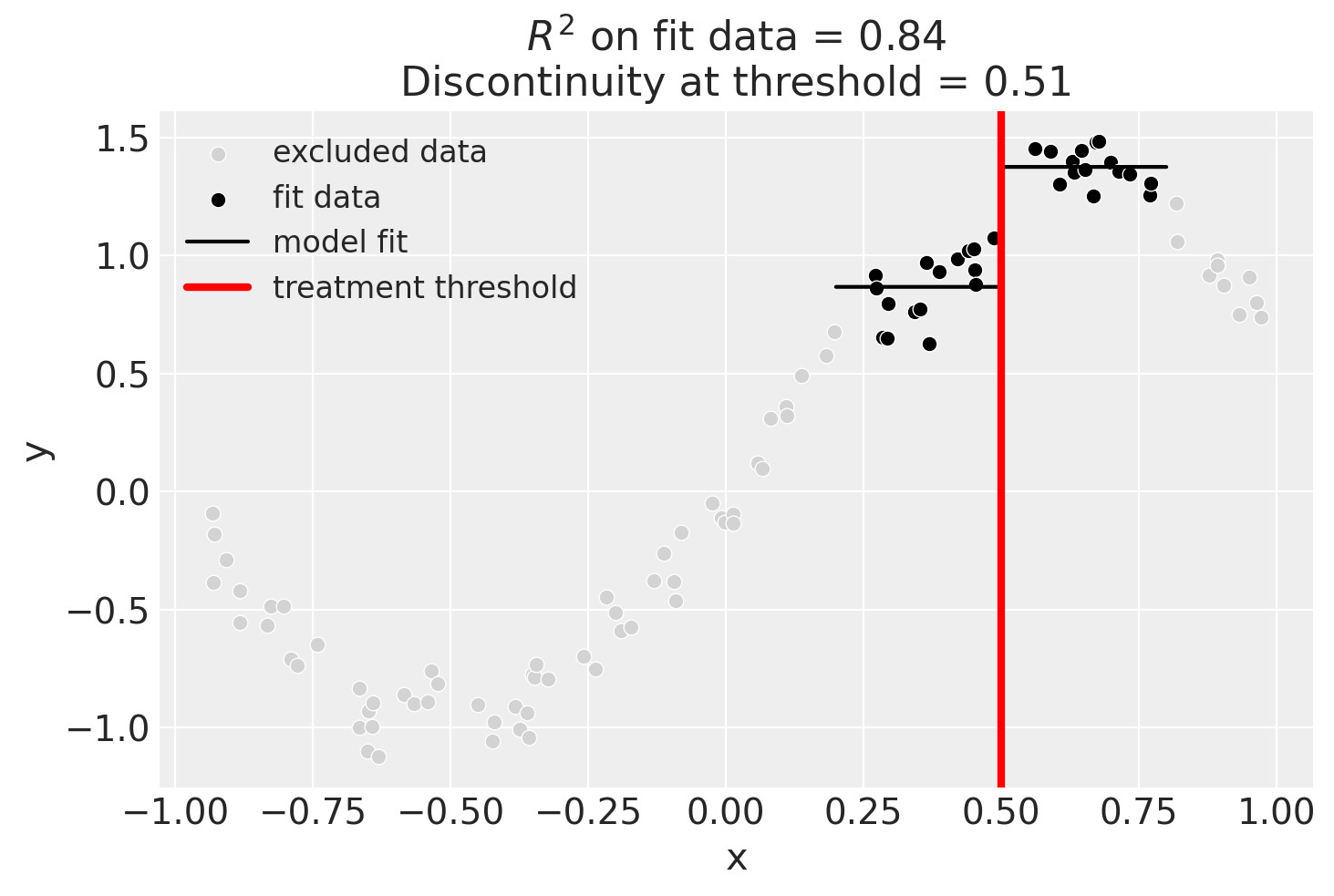

## Using a bandwidth#

One way how we could deal with this is to use the `bandwidth`

kwarg. This will only fit the model to data within a certain bandwidth of the threshold. If \(x\) is the running variable, then the model will only be fitted to data where \(threshold - bandwidth \le x \le threshold + bandwidth\).

```
result = cp.RegressionDiscontinuity(
data,
formula="y ~ 1 + x + treated + x:treated",
model=LinearRegression(),
treatment_threshold=0.5,
bandwidth=0.3,
)
result.plot();
```

We could even go crazy and just fit intercepts for the data close to the threshold. But clearly this will involve more estimation error as we are using less data.

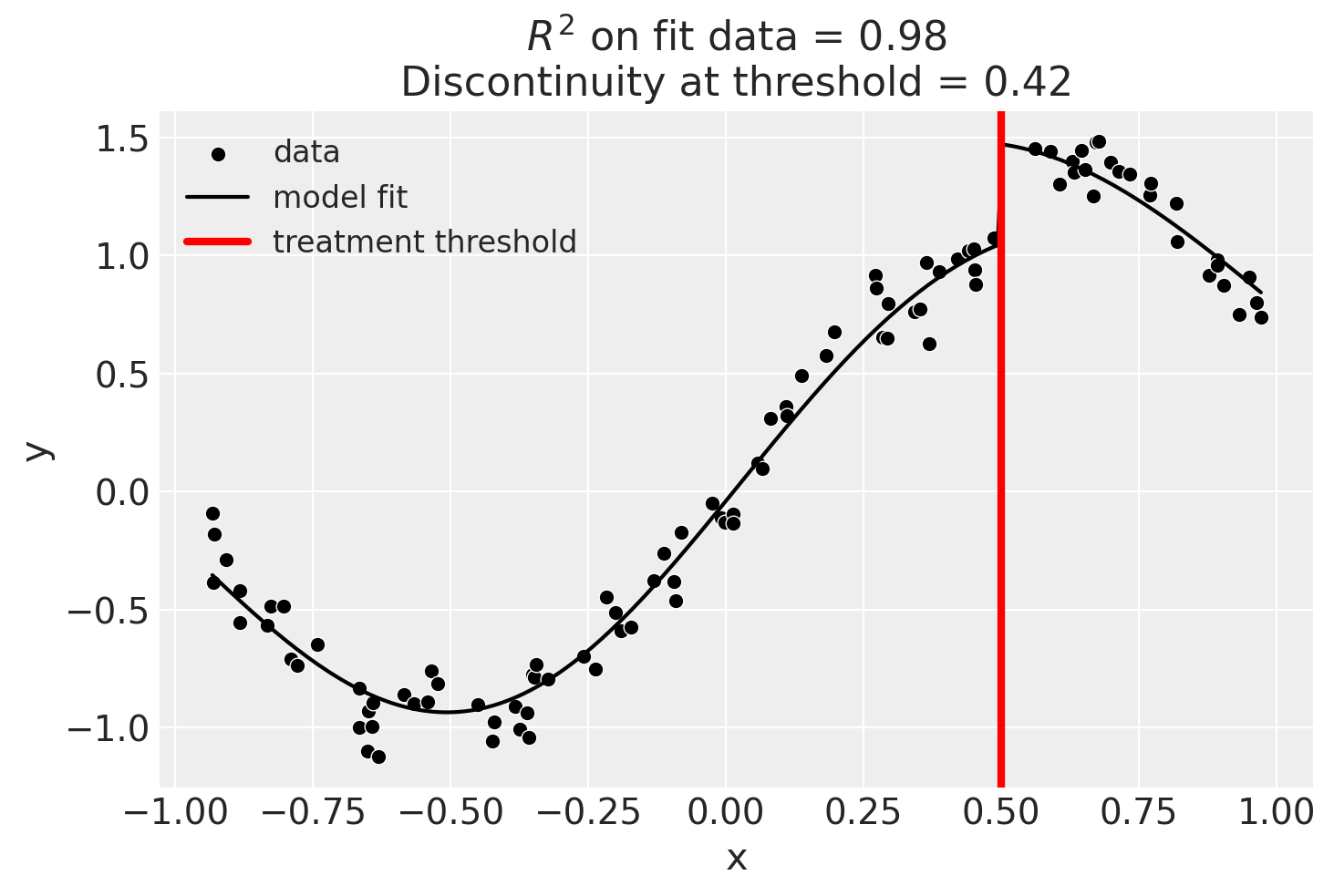

## Using Gaussian Processes#

Now we will demonstrate how to use a scikit-learn model.

```
kernel = 1.0 * ExpSineSquared(1.0, 5.0) + WhiteKernel(1e-1)
result = cp.RegressionDiscontinuity(
data,
formula="y ~ 1 + x + treated",
model=GaussianProcessRegressor(kernel=kernel),
treatment_threshold=0.5,
)
```

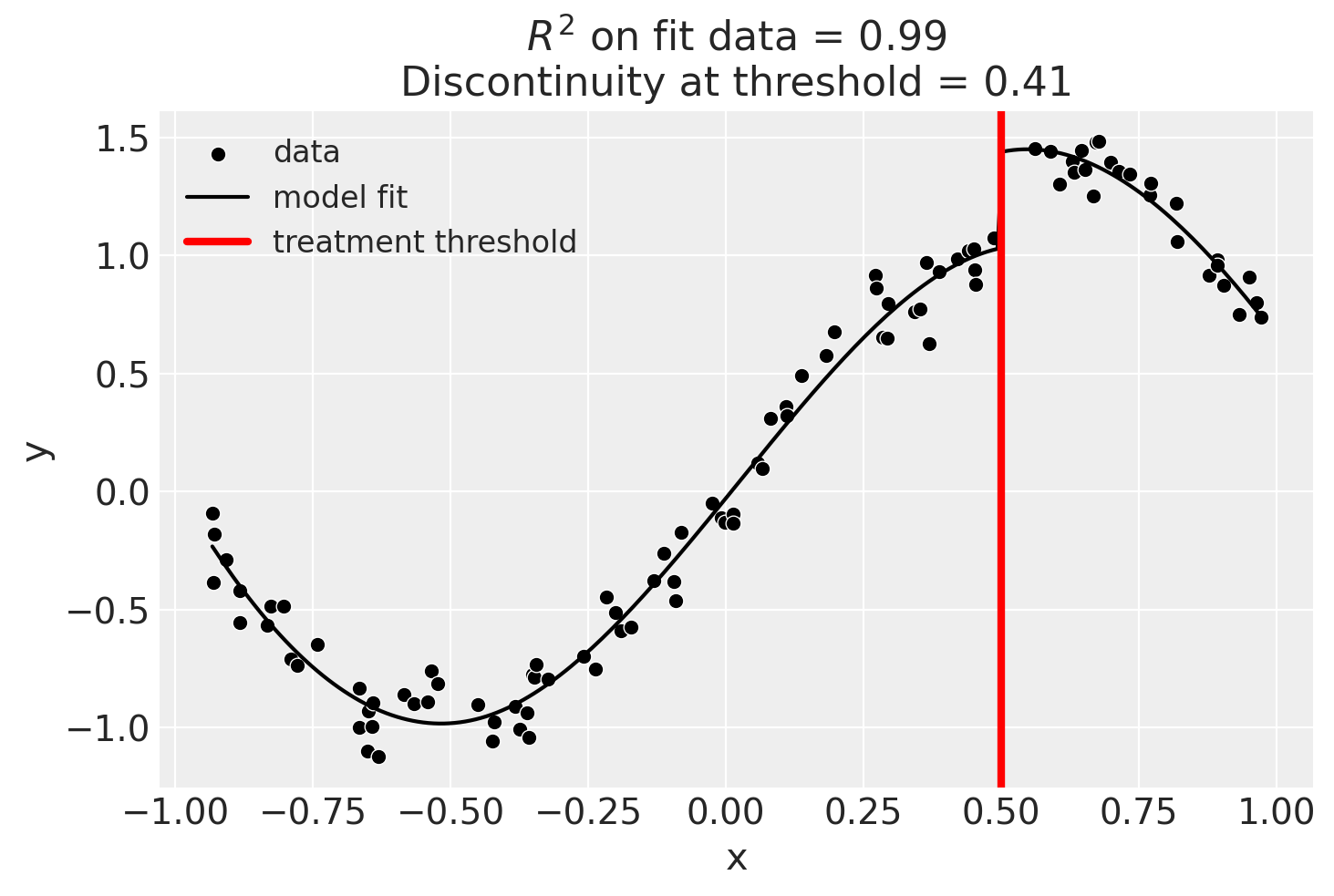

## Using basis splines#

```
result = cp.RegressionDiscontinuity(
data,
formula="y ~ 1 + bs(x, df=6) + treated",
model=LinearRegression(),
treatment_threshold=0.5,
)
```

```
result.summary(round_to=3)
```

```
Difference in Differences experiment
Formula: y ~ 1 + bs(x, df=6) + treated
Running variable: x
Threshold on running variable: 0.5
Results:
Discontinuity at threshold = 0.41
Model coefficients:
Intercept 0
treated[T.True] 0.407
bs(x, df=6)[0] -0.594
bs(x, df=6)[1] -1.07
bs(x, df=6)[2] 0.278
bs(x, df=6)[3] 1.65
bs(x, df=6)[4] 1.03
bs(x, df=6)[5] 0.567
```
