Regression discontinuity with pymc models

import causalpy as cp

WARNING (pytensor.tensor.blas): Using NumPy C-API based implementation for BLAS functions.

%load_ext autoreload
%autoreload 2
%config InlineBackend.figure_format = 'retina'
seed = 42

df = cp.load_data("rd")

Linear, main-effects, and interaction model

Note

The random_seed keyword argument for the PyMC sampler is not neccessary. We use it here so that the results are reproducible.

result = cp.pymc_experiments.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, sigma]

100.00% [8000/8000 00:02<00:00 Sampling 4 chains, 0 divergences]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 2 seconds.
Sampling: [beta, sigma, y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

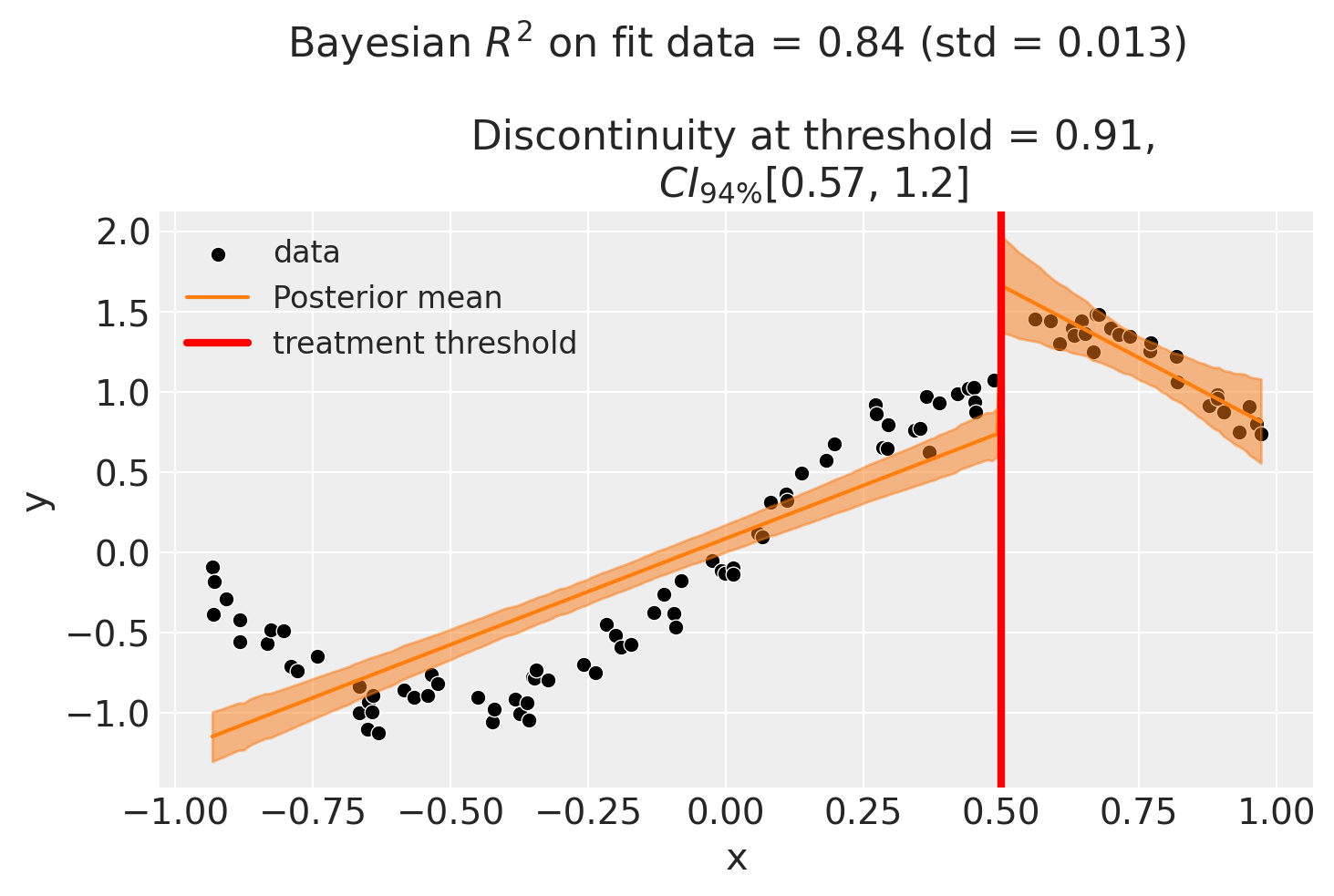

Though we can see that this does not give a good fit of the data almost certainly overestimates the discontinuity at threshold.

Using a bandwidth

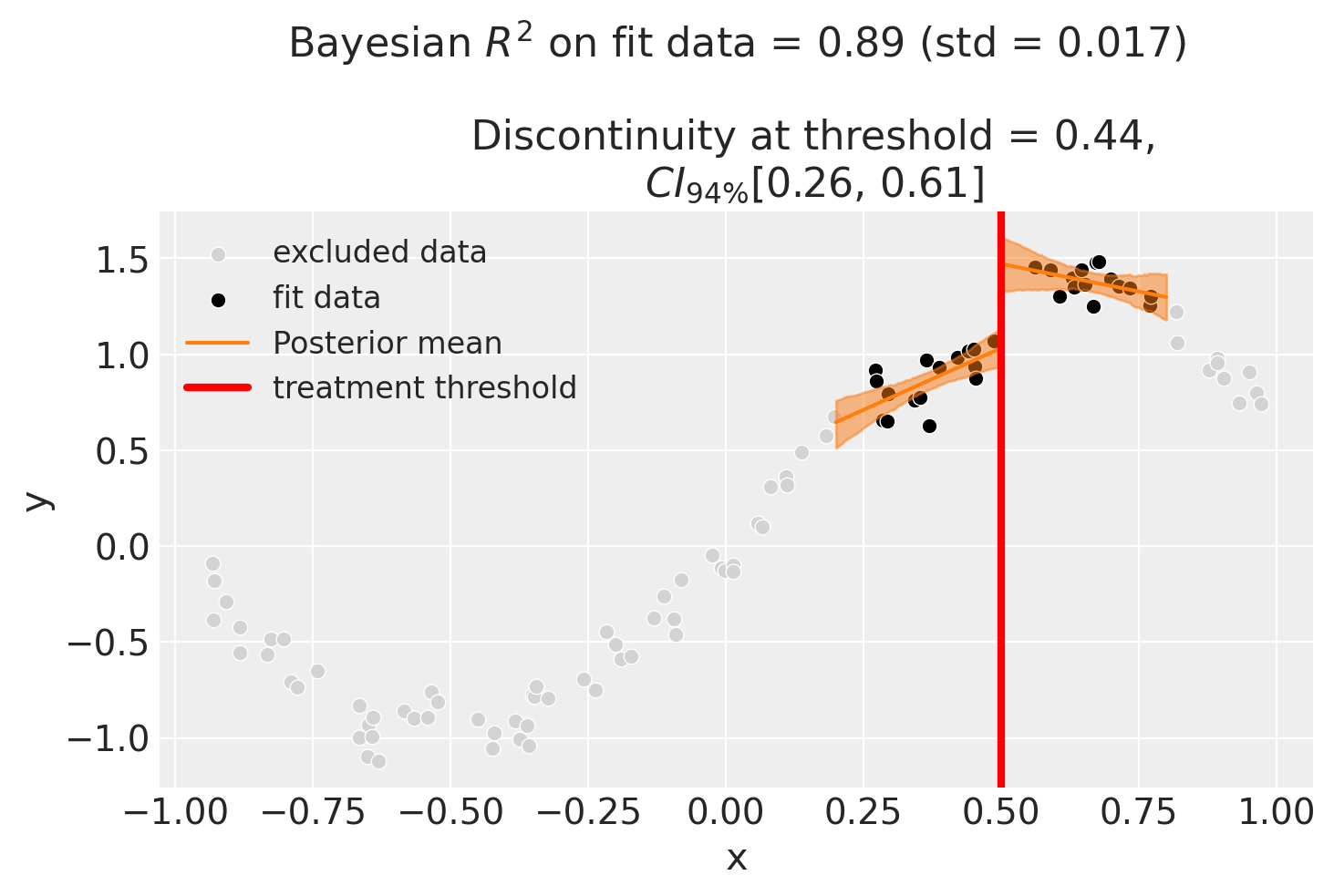

One way how we could deal with this is to use the bandwidth kwarg. This will only fit the model to data within a certain bandwidth of the threshold. If \(x\) is the running variable, then the model will only be fitted to data where \(threshold - bandwidth \le x \le threshold + bandwidth\).

result = cp.pymc_experiments.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.3,
)

fig, ax = result.plot()

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, sigma]

100.00% [8000/8000 00:04<00:00 Sampling 4 chains, 0 divergences]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 5 seconds.
Sampling: [beta, sigma, y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

We could even go crazy and just fit intercepts for the data close to the threshold. But clearly this will involve more estimation error as we are using less data.

result = cp.pymc_experiments.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.2,
)

fig, ax = result.plot()

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, sigma]

100.00% [8000/8000 00:00<00:00 Sampling 4 chains, 0 divergences]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, sigma, y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

Using basis splines

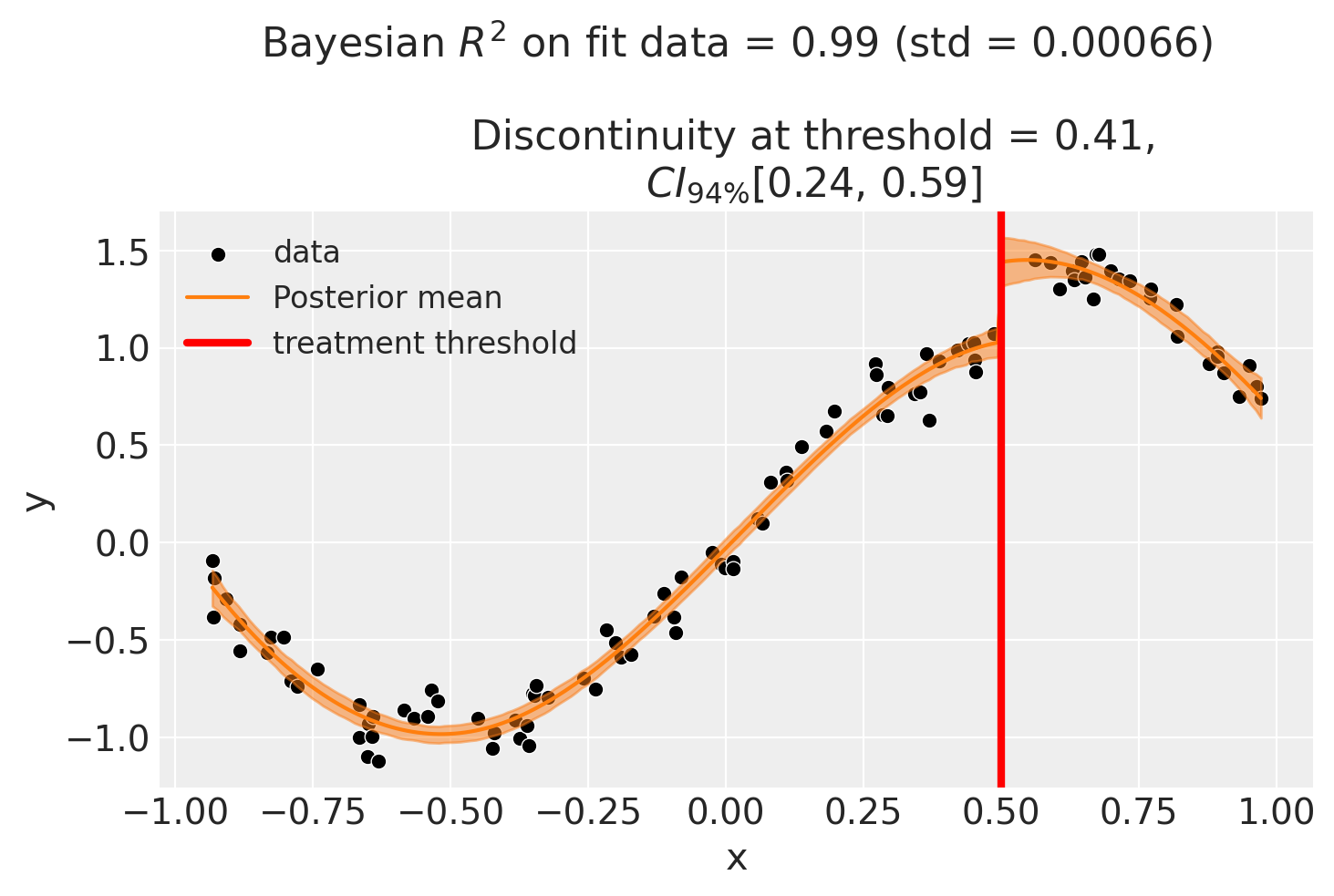

Though it could arguably be better to fit with a more complex model, fit example a spline. This allows us to use all of the data, and (depending on the situation) maybe give a better fit.

result = cp.pymc_experiments.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + bs(x, df=6) + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, sigma]

100.00% [8000/8000 00:02<00:00 Sampling 4 chains, 0 divergences]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 3 seconds.
Sampling: [beta, sigma, y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

As with all of the models in this notebook, we can ask for a summary of the model coefficients.

result.summary()

============================Regression Discontinuity============================
Formula: y ~ 1 + bs(x, df=6) + treated
Running variable: x
Threshold on running variable: 0.5

Results:
Discontinuity at threshold = 0.41
Model coefficients:
Intercept                     -0.23, 94% HDI [-0.32, -0.15]
treated[T.True]               0.41, 94% HDI [0.23, 0.59]
bs(x, df=6)[0]                -0.59, 94% HDI [-0.78, -0.40]
bs(x, df=6)[1]                -1.07, 94% HDI [-1.21, -0.93]
bs(x, df=6)[2]                0.28, 94% HDI [0.13, 0.43]
bs(x, df=6)[3]                1.65, 94% HDI [1.50, 1.81]
bs(x, df=6)[4]                1.03, 94% HDI [0.66, 1.38]
bs(x, df=6)[5]                0.57, 94% HDI [0.38, 0.76]
sigma                         0.10, 94% HDI [0.09, 0.12]
